If you’re running a business in Australia and looking at solar battery storage, chances are you’ve come across the FoxESS CQ6. It’s been popping up more and more, especially as commercial solar panel companies start recommending high-voltage battery systems for bigger energy loads.

But is it actually worth the investment? Let’s break it down in plain English — no confusing jargon, just the stuff that actually matters for your business.

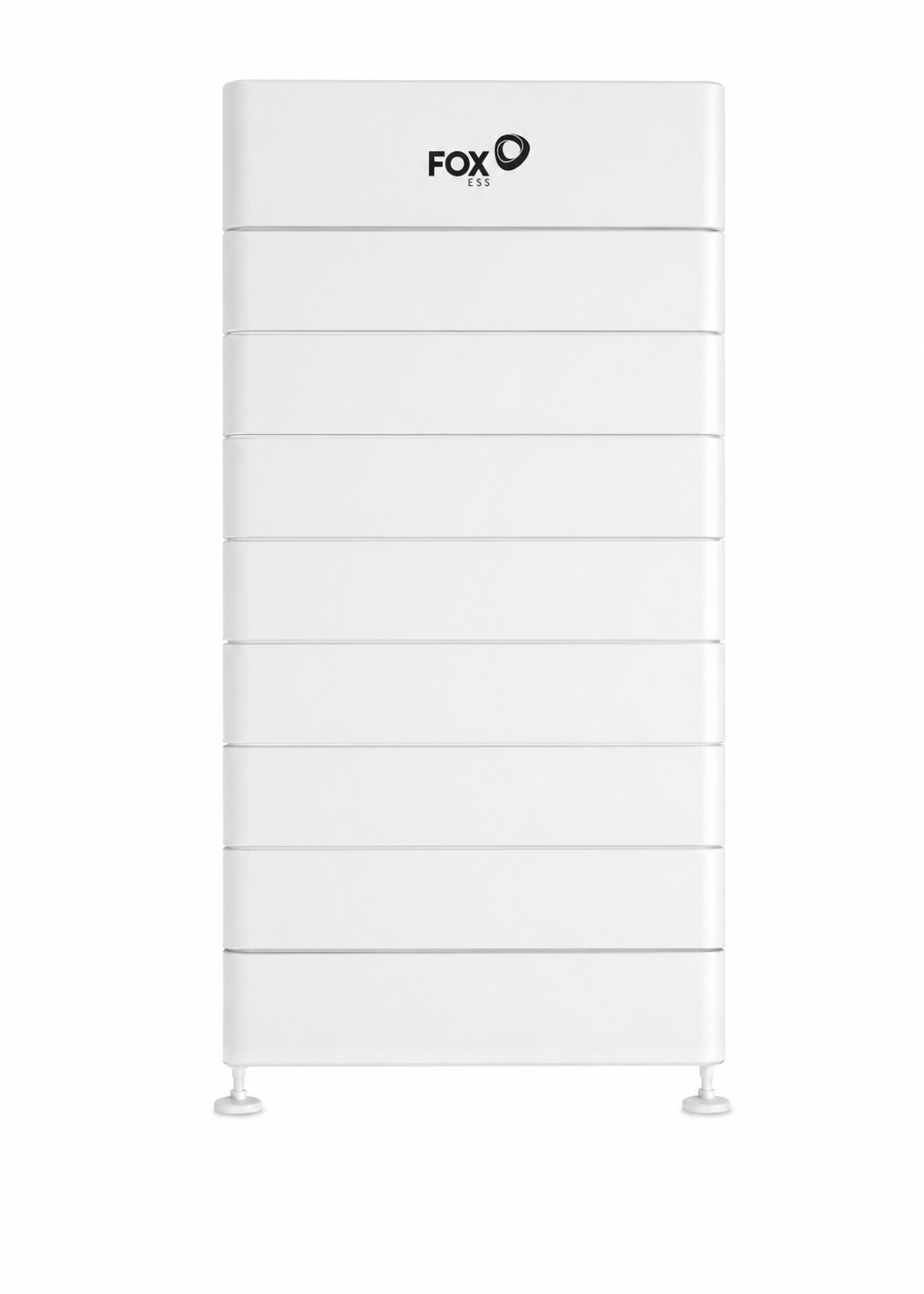

What Is the FoxESS CQ6 Battery?

The FoxESS CQ6 is a high-voltage lithium iron phosphate (LFP) battery designed for commercial and large-scale solar setups. What makes it stand out is its modular design — you can start with a smaller system and keep adding battery modules as your energy needs grow over time.

Each single battery module (CQ6-S) stores 5.99kWh of usable energy. The minimum recommended system starts at 11.98kWh, and you can scale all the way up to a maximum of 83.86kWh by connecting up to 14 modules in series. That’s a serious amount of backup power for most Australian businesses.

It runs on LFP chemistry, which is well known for being safer, more stable, and longer-lasting than older lithium-ion technologies. For business owners, that means fewer safety concerns and a better return over the long run.

Full Technical Specs From the Datasheet

Let’s go through exactly what the CQ6 offers — straight from the official FoxESS specifications:

Electrical Characteristics

Battery type: LFP (LiFePO₄)
Single module capacity (CQ6-S): 5.99kWh nominal / 5.99kWh usable
Minimum system (CQ6-L2 — 1 module): 11.98kWh nominal, 11.98kWh usable
Nominal voltage at L2: 115.2V
Rated DC power at L2: 5.76kW
Operating voltage range at L2: 104.4V – 131.4V
Maximum system (CQ6-L14 — 13 modules): 83.86kWh nominal, 83.86kWh usable
Nominal voltage at L14: 806.4V
Rated DC power at L14: 40.32kW
Operating voltage range at L14: 730.8V – 919.8V
Round-trip efficiency: Greater than 95%
Depth of Discharge (DoD): 100%
Communication protocol: CAN
Scalability: Maximum 14 modules in series
Display: CQ6-S has 1 LED indicator / CQ6-M has 6 LED indicators

Operating Conditions

Installation location: Outdoor or Indoor (Stand)
Operating temperature (charge): 0°C to 55°C
Operating temperature (discharge): -10°C to 55°C
Storage temperature: -10°C to 50°C
Cooling method: Natural convection — no noisy fans required
Humidity: 5% to 95% (no condensation)
Maximum altitude: 2,000 metres

Mechanical Characteristics

Dimensions (W × D): 660mm × 360mm
Height varies by system size — from 105.2mm (L2) up to 705.2mm (L14)
Weight varies by configuration (±5% tolerance)
Ingress protection: IP65 — fully protected against dust and water jets

Certifications

Safety: IEC 62619
EMC: IEC 61000-6-1 / 6-2 / 6-3 / 6-4
Transportation: UN38.3
Country of manufacture: China

Why Australian Businesses Are Choosing It

There’s a good reason more and more commercial solar panel companies across Australia are recommending the CQ6. It ticks a lot of the right boxes for commercial energy storage.

Scalability that actually works. You don’t have to commit to the full 83.86kWh system upfront. A business can start at 11.98kWh and expand module by module as the budget allows or as energy demands grow. That kind of flexibility is rare and genuinely useful.

Built for Australian conditions. The IP65 rating means it can handle dust and water — perfect for workshops, warehouses, or any outdoor install. The wide discharge temperature range of -10°C to 55°C means it performs in both cold winter mornings and scorching summer afternoons without missing a beat.

No noisy fans. The CQ6 uses natural convection cooling, so there are no fans running constantly in the background. That’s a bonus for businesses where noise levels matter.

Plug-and-play installation. The system is designed for straightforward installation, which saves time on-site and keeps labour costs down. Most experienced commercial solar panel companies can get it set up efficiently without complications.

100% usable energy. Unlike some older battery technologies that only allow 80–90% depth of discharge, the CQ6 gives you 100% DoD. Every single kWh stored is a kWh you can actually use.

What About Commercial Solar Panel Cost?

When businesses start exploring commercial solar panel cost, battery storage is often the part that raises the most questions. The honest answer is — the CQ6 is a premium product, and it’s priced accordingly.

That said, the value you get is strong. With over 95% round-trip efficiency and 100% depth of discharge, you’re extracting more usable energy per cycle compared to many cheaper alternatives. Over the life of the system, that adds up to real savings.

The modular design also helps manage commercial solar panel cost by letting businesses start smaller and expand later rather than paying for more capacity than they need upfront.

For a proper quote that reflects your actual business energy load, location, and usage patterns, it’s always best to speak with trusted local commercial solar panel companies who can size the system correctly.

How It Works With Your Solar System

The CQ6 is built specifically for high-voltage solar inverter setups. Here’s the simple version of how it all works:

During the day, your solar panels generate electricity. Any power your business doesn’t use right away gets stored inside the CQ6 battery rather than being sent back to the grid for a low feed-in tariff.

At night — or on cloudy days — the battery automatically discharges, supplying your business with stored solar energy instead of drawing from the grid. This is where the real savings happen, especially for businesses with high evening or overnight energy usage.

With a system properly sized by experienced commercial solar panel companies, many Australian businesses can dramatically reduce their reliance on grid power throughout the day and night.

Pros and Cons of the FoxESS CQ6

What we like:

100% depth of discharge — use every bit of stored energy
Scales from 11.98kWh all the way up to 83.86kWh
Greater than 95% round-trip efficiency
IP65 rated — handles dust, rain, and Australian weather
Operates in temperatures from -10°C to 55°C (discharge)
Natural convection cooling — no fans, no noise
Plug-and-play installation saves time
LFP chemistry — safer and longer-lasting
CAN communication for smart energy management
Certified to IEC 62619, IEC 61000, and UN38.3 standards

Things to keep in mind:

High-voltage system — requires a compatible inverter (confirm compatibility before purchasing)
Maximum altitude of 2,000 metres (not relevant for most Australian sites)
Premium product — not the lowest commercial solar panel cost option on the market, but the specs justify it

Is the FoxESS CQ6 Worth It for Your Business?

For most commercial setups in Australia — yes, absolutely.

The combination of high efficiency, 100% DoD, wide temperature tolerance, IP65 protection, and genuine scalability makes the CQ6 one of the stronger battery storage options available right now. Whether you’re a small business starting with 11.98kWh or a large operation building out an 83.86kWh system, there’s a configuration that fits.

The key is getting the sizing right from the start. Too small and you won’t see the full savings. Too large and you’ve overspent on capacity you don’t need. That’s why working with trusted commercial solar panel companies who understand load analysis and system design makes such a big difference.

The FoxESS CQ6 is a well-engineered, scalable battery built for serious commercial energy storage. The specs are strong across the board — efficiency, safety ratings, temperature tolerance, modular flexibility, and certifications all stack up well against competitors.

About Quick Solar

Quick Solar is one of the trusted commercial solar panel companies in Australia, helping businesses reduce electricity costs with high-performance solar and battery storage solutions. The company specialises in designing and installing customised commercial solar panel systems for warehouses, offices, factories, retail spaces, and industrial facilities across Australia.

With a strong focus on quality, energy efficiency, and long-term savings, Quick Solar works closely with businesses to deliver scalable solar solutions tailored to their energy usage and operational requirements.

From helping clients understand commercial solar panel cost to recommending the right battery storage systems like the FoxESS CQ6, their team provides end-to-end support throughout the entire process.

If you’re already investing in a commercial solar panel system, pairing it with a properly sized CQ6 setup is a smart move for long-term energy savings.
