Sungrow Solar Battery Systems – SBR & SBH Series
Smarter energy storage for modern Australian homes.
Quick Solar proudly supplies and installs Sungrow’s SBR and SBH high-voltage lithium batteries, offering reliable backup power, greater energy independence, and long-term performance.
Secure your Federal Solar Battery Rebate and take full control of your solar energy.
Why Choose Sungrow Batteries
Sungrow Solar Batteries provide an efficient and reliable energy storage solution, designed to meet both residential and commercial energy needs. With advanced features like high power output, scalable capacity, and 100% usable energy, Sungrow batteries ensure that you can store excess solar energy and use it when needed most.
High Power Output
Up to 50A continuous charge/discharge for fast energy response.
Scalable Capacity
Expandable from 6.4kWh to 40kWh per system, up to 160kWh in parallel.
100% Usable Energy
Get full storage performance with no energy waste.
Safety Assured
Built with LiFePO₄ (LFP) chemistry and advanced multi-stage protection.
Easy Installation
Modular, stackable design – plug & play setup, no wiring between modules.
Durability
10-year warranty and tested for Australian conditions (–20°C to 50°C).
Pro Tips for Maximizing Your Sungrow Solar Battery System
- Use Smart Monitoring
Track your battery’s performance and optimize charging/discharging based on real-time data to extend battery life and efficiency. - Pair with a Quality Solar Inverter
Ensure optimal energy storage and power distribution by pairing your Sungrow battery with a compatible, high-quality inverter. - Adjust for Seasonal Changes
Modify settings like depth of discharge (DOD) and charging for seasonal variations to enhance battery life and balance energy use. - Use Energy During Peak Hours
Save on energy costs by using stored battery power during peak electricity pricing hours, reducing reliance on the grid.

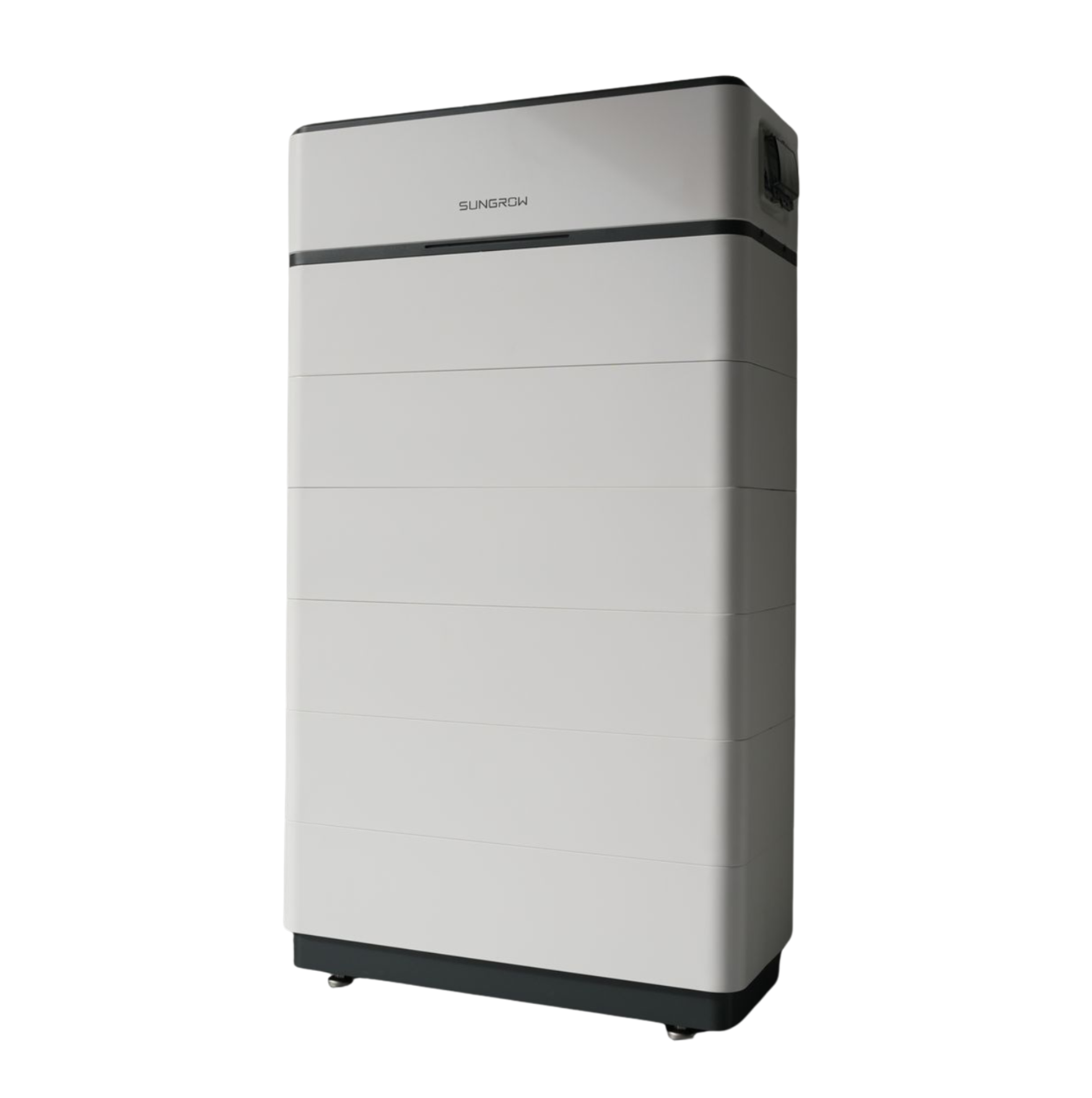

Sungrow SBR Series – Compact Home Storage (3.2–25.6 kWh)
Perfect for residential use, the SBR Series delivers modular high-voltage energy storage with efficient LiFePO₄ cells and plug-and-play setup.
| Model | Usable Energy | Voltage | Modules | Max Power | Weight | Protection |
|---|---|---|---|---|---|---|
| SBR064 | 6.4 kWh | 128 V | 2 | 3.84 kW | 89 kg | IP55 |
| SBR096 | 9.6 kWh | 192 V | 3 | 5.76 kW | 114 kg | IP55 |
| SBR128 | 12.8 kWh | 256 V | 4 | 7.68 kW | 147 kg | IP55 |
| SBR160 | 16.0 kWh | 320 V | 5 | 9.60 kW | 180 kg | IP55 |
| SBR192 | 19.2 kWh | 384 V | 6 | 11.52 kW | 213 kg | IP55 |
| SBR224 | 22.4 kWh | 448 V | 7 | 13.44 kW | 246 kg | IP55 |
| SBR256 | 25.6 kWh | 512 V | 8 | 15.36 kW | 279 kg | IP55 |
| SBH200 | 20.0 kWh | 281.6 V | 4 | 14.08 kW | 196 kg | IP55 |
| SBH250 | 25.0 kWh | 352.0 V | 5 | 17.60 kW | 241 kg | IP55 |
| SBH300 | 30.0 kWh | 422.4 V | 6 | 21.12 kW | 286 kg | IP55 |
| SBH350 | 35.0 kWh | 492.8 V | 7 | 24.64 kW | 331 kg | IP55 |
| SBH400 | 40.0 kWh | 563.2 V | 8 | 28.16 kW | 376 kg | IP55 |
- Expandable from 6.4 kWh up to 25.6 kWh (8 modules)
- Compact, floor-standing design for easy indoor/outdoor installation
- Natural convection cooling – low noise, high efficiency
Complete Solar + Battery Packages Available
We don’t just install batteries — we deliver complete solar energy systems with top-tier panels and inverters.
| Panel Brand | Model | Output |
|---|---|---|
| Jinko Solar | Tiger Neo | 440 W |
| Aiko Solar | N-Type Series | 475 W |
| Longi Solar | Hi-MO 6 | 440 W |
| Seraphim | S4 Series | 440 W |
Combine any of these with a Fox ESS Hybrid Inverter + EQ Battery for a future-ready home power solution.
Benefits of Sungrow Solar Batteries for Homeowners
Lower Electricity Bills
By storing solar energy during the day, Sungrow batteries allow homeowners to use this stored energy at night or during peak hours, reducing reliance on the grid and lowering electricity bills.
Backup Power
Sungrow Solar Batteries provide peace of mind with backup power during grid outages. You can rely on stored energy to keep essential appliances running during power disruptions.Sustainability
Using Sungrow batteries helps homeowners contribute to a more sustainable future, as they store renewable solar energy, reducing dependence on fossil fuels and lowering carbon footprints.
Sungrow Solar Batteries for Businesses
Cost Savings
Businesses can save on energy costs by storing excess solar energy during the day and using it during peak hours, reducing reliance on grid power, which is often more expensive.
Energy Independence
Sungrow batteries offer energy independence, enabling businesses to rely less on the grid and avoid energy price fluctuations, ensuring a stable and predictable energy supply.
Scalability
Sungrow’s modular battery design is scalable, so businesses can start small and expand their system as energy needs grow, making it a flexible and long-term solution.
Federal Government Solar Battery Rebate
Quick Solar helps you claim the Australian Solar Battery Rebate, reducing your upfront investment in Sungrow battery storage.
Save thousands instantly
We handle full rebate documentation
Fast installation & system activation
Why Choose Quick Solar
Quick Solar stands out as your trusted Australian-owned solar company, dedicated to providing end-to-end services for solar installation, design, and rebate claims. Our commitment to using only the premium brands such as Jinko, Aiko, Longi, Seraphim, and Fox ESS guarantees reliability and high-performance energy solutions.
Sungrow Certified Installers
100% Australian-owned solar company
End-to-end service: design, install, rebate claim
Premium brands only – Jinko, Aiko, Longi, Seraphim, Fox ESS
24/7 local support & monitoring setup
- Service Areas: Sydney, Brisbane, Melbourne, Adelaide & Perth
As the world moves towards more sustainable energy solutions, solar power has become a cornerstone for eco-friendly energy consumption. However, to fully optimize your solar energy system, efficient storage solutions are needed.
The Sungrow Solar Battery, offered by Quick Solar, provides a cutting-edge energy storage solution that ensures you can store excess solar power for later use, reducing reliance on the grid and lowering your electricity costs. Designed for both residential and commercial applications, Sungrow batteries deliver high performance, flexibility, and safety, making them an ideal choice for enhancing your solar system’s efficiency.
Key Features of Sungrow Solar Battery Systems
1. High-Performance Lithium Iron Phosphate (LiFePO4) Cells
At the heart of the Sungrow Solar Battery is the Lithium Iron Phosphate (LiFePO4) cell, known for its stability, safety, and longevity. This battery technology is highly efficient, capable of storing more energy while maintaining long-term reliability.
The high voltage of Sungrow batteries ensures that more energy is stored in less space. Whether you opt for the Sungrow SBH-5kWh or Sungrow SBR-3.2kWh, each model offers efficient energy use with minimal loss. The Sungrow SBR models provide up to 30A continuous charging and discharging current, while the SBH models offer up to 50A continuous, ensuring high power output when required.
2. Maximum Usable Energy and Flexibility
Sungrow batteries are designed to maximize usable energy, with up to 100% usable capacity. This feature ensures that you can get the most out of every kilowatt-hour stored, especially in scenarios where energy needs fluctuate during peak hours.
Moreover, the Sungrow Solar Battery system is highly extendable and customizable. The modular design allows users to easily add additional battery units, ensuring that the system can scale with your energy requirements. With support for up to 8 modules in the SBH models, and a capacity range from 6.4 kWh to 25.6 kWh in the SBR models, there is a flexible option for homes or businesses of any size.
3. Safety and Protection Features
Safety is a top priority in energy storage, and the Sungrow battery system is equipped with several multi-stage protection mechanisms to ensure your home or business is safe.
- Over/Under Voltage Protection: This ensures that your battery system remains within the safe operating voltage range.
- Overcurrent Protection: Protects the battery from overloading, ensuring that your system operates at peak efficiency without risk of damage.
- Over/Under Temperature Protection: Prevents damage from extreme temperatures, ensuring the battery works reliably in hot or cold environments.
- Short-Circuit Protection: Ensures the system can withstand any unexpected surges.
4. Easy Installation
Sungrow batteries are designed for easy installation with a plug-and-play system. This means no complex wiring between battery modules, which not only simplifies the installation process but also reduces the potential for errors.
With modular stackable designs, a single person can easily install the battery without the need for extensive technical expertise. The SBR and SBH models come with mounting options that support indoor or outdoor installation, providing more flexibility for homeowners and businesses alike.
Additionally, Sungrow batteries are compatible with existing solar panel systems, making it a great option for those who already have solar installations but are looking to add storage for energy independence.
5. Environmentally Friendly and Long-Lasting
Sungrow batteries are designed with the environment in mind. By storing excess solar energy, they help reduce reliance on fossil fuels, contributing to a cleaner, greener planet.
FAQs
What makes Sungrow Solar Batteries different from other brands?
Sungrow Solar Batteries are known for their high efficiency, long lifespan, and modular design, which allows easy scalability. They use Lithium Iron Phosphate (LiFePO4) cells, which are safer and more durable than other battery technologies.
What is the capacity range of Sungrow Solar Batteries?
Sungrow Solar Batteries range in capacity from 6.4 kWh to 40 kWh, depending on the model. The modular design allows users to start with a smaller system and expand as needed, offering flexibility for both residential and commercial use
What is the efficiency of Sungrow Solar Batteries?
Sungrow Solar Batteries offer high efficiency, with minimal energy loss during storage and discharge. The system ensures that most of the stored energy is usable, providing 100% usable energy for your needs.
How are Sungrow Solar Batteries installed?
Sungrow batteries are designed for easy installation. Their modular design allows for quick setup, with plug-and-play connections, minimizing installation time and complexity.
Do Sungrow Solar Batteries require a lot of maintenance?
Sungrow Solar Batteries require minimal maintenance. Periodic checks to ensure everything is functioning properly and occasional cleaning are typically all that’s needed to keep the system running efficiently.
Power Smarter with Sungrow + Quick Solar
Switch to a Sungrow solar battery and secure your rebate today.
